Short answer: A gas generator's main outlet is 120V AC, but LED lighting questions usually involve the DC side — the 12V (or 24V) battery-charging output some portable generators provide, or a battery bank the generator charges. That DC supply is often unregulated, and its voltage can vary with load and charging state. A 12V LED built for a narrow, stable input has little margin on that kind of supply, while a wide-voltage (8–30V) constant-current LED tolerates normal variation better. Check your generator's manual, confirm the circuit's actual voltage range, and match the light to it.
First, get the power source right
Before choosing a light, be clear about which output you're wiring to. A gas generator can give you two very different things:
- 120V AC (the main receptacles). Standard mains power. Regular line-voltage fixtures and bulbs run here — this isn't the tricky part, and it isn't what this guide is about.
-
12V / 24V DC (a battery-charging output, if the model has one, or a battery bank the generator charges). This is the low-voltage side used for equipment lighting, enclosure and panel lighting, cabins, RVs, marine, and off-grid setups. This is where LED lighting questions usually come up.
One important caution: a generator's DC outlet is often intended only for charging a battery, not as a general-purpose power outlet for running loads directly. Check your generator's manual before powering a light straight from it. In many setups the better approach is to connect the light to an appropriately designed battery-based DC circuit rather than to the generator's charging terminals. A DC light does not plug into the 120V AC receptacle.
Why a generator's DC supply can be demanding for a narrow-range 12V LED
A "12V" DC source tied to a generator or battery system is often not a clean, steady 12.0 volts. Depending on the setup, it can move around:
- A nominal 12V battery system can rise to roughly 14–15V while charging, though the actual range depends on the battery, charger, generator, load, and operating conditions.
- Engine speed changes, load switching, and charging cycles can introduce voltage variation, ripple, or electrical noise.
- Long cable runs and shared circuits add voltage drop on top of that.
A generic LED built for a fixed 12V input has little headroom for that. On a supply that runs above nominal and varies, the driver electronics can be stressed over time — sometimes before the LED emitter itself would wear out. In many cases this is a voltage-range mismatch, not a defective bulb. How much it matters depends on the specific generator, circuit, and light, since designs vary by model.
Failure cause → fix
| What's happening | Likely cause | What to do |
|---|---|---|
| LED degrades or fails over time on a generator/battery DC circuit | Unregulated DC can run above nominal and vary with load and charge; a narrow-range 12V LED has little margin | Use a wide-voltage (8–30V) constant-current LED whose rated range covers the circuit |
| Light flickers or dims as engine speed or load changes | Voltage varies with engine speed, load, and charging state | A wide input range plus constant-current regulation helps hold LED current steady while the input stays within range |
| A DC light won't work on the 120V outlet | Wrong output — DC lights connect to the DC side, not to 120V AC | Wire to the DC circuit (battery/aux terminals or a battery bank), per the manual — not the AC receptacle |
| Dim or uneven output far from the source | Voltage drop over long runs | Size the wiring correctly for the run and current; a wide-voltage light tolerates the low end better |
What to use: a wide-voltage, constant-current LED
The property that matters most is the input voltage range and the driver type, not the wattage or the shape. A light with a constant-current driver rated across a wide window (for example 8–30V) helps regulate LED current while the input remains within the product's specified operating range — useful when a bus sits at 11V one moment and climbs toward 14–15V under charge. Note that a wide operating range helps tolerate normal voltage variation; on its own it is not a claim of surge or transient protection.

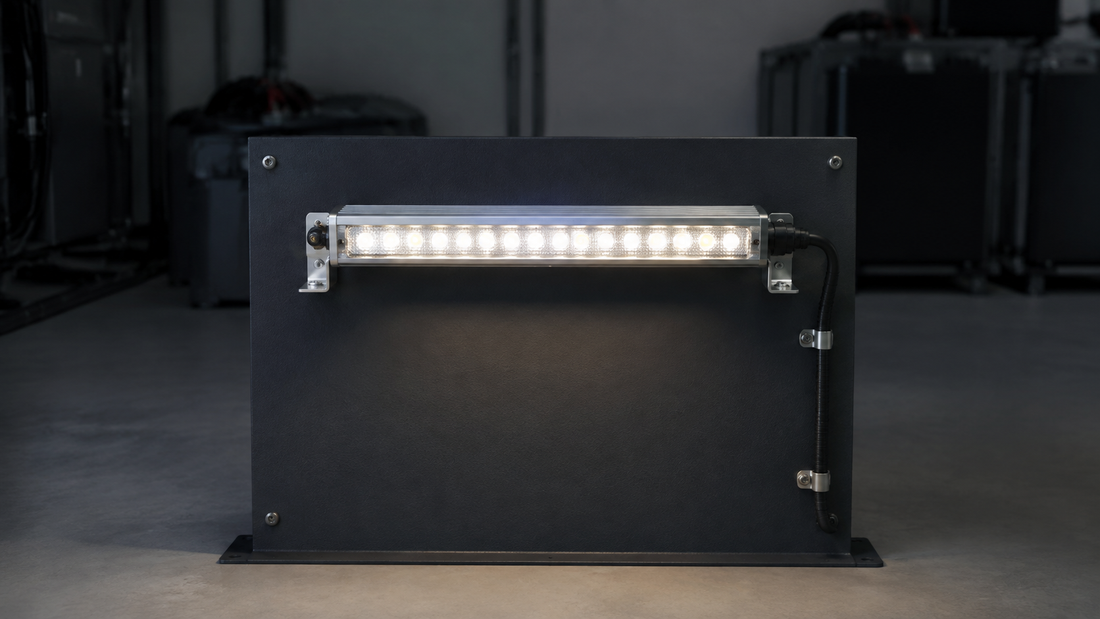

For equipment, enclosure, cabin, and panel lighting, an aluminum LED light bar can be a practical choice: it mounts flat to a surface or inside a housing and spreads light along a length rather than from a single point. The 8–30V wide-voltage aluminum LED light bar is one example: its constant-current driver is rated to run from 8V to 30V, so it works across 9V, 12V, and 24V systems, and it ships as a 12" aluminum bar with a mounting kit — suited to marine, solar/wind, RV, vehicle, and equipment use. Confirm your DC circuit's actual voltage range falls within the light's rated 8–30V window before wiring it in.
How to spec lighting for a generator DC system
- Identify the exact circuit. Are you wiring to 120V AC (use line-voltage fixtures) or to a 12V/24V DC battery/charging circuit (use DC lighting)? These are not interchangeable. Check the generator manual for whether its DC outlet is charging-only.
- Measure the real voltage range, not the nominal. A "12V" bus may sit near 11–12V and climb toward 14–15V under charge, depending on conditions — spec for the high end.
- On a 24V system, verify the maximum charging voltage stays below the light's 30V input limit. Some nominal 24V systems can approach or exceed that under charge, so don't assume every 24V system is automatically compatible — check the numbers.
- Choose a wide-voltage, constant-current LED whose rated input window comfortably covers that measured range.
- Pick a form factor that suits the environment — an aluminum bar for enclosures and surface mounting.
- Never connect a DC-rated light to a 120V AC outlet, or a line-voltage fixture to the DC circuit.
Wiring it in
A few basics when connecting a DC light to a battery or generator DC circuit:
- Observe polarity — connect positive and negative correctly.
- Use appropriately sized wiring for the current and the length of the run.
- Install a correctly sized fuse near the DC source to protect the circuit.
- Respect the circuit's current limit — don't exceed what the source or wiring is rated for.
- Follow both manufacturers' instructions — the generator's and the light's.
If you are unsure about any of this, consult a qualified electrician or technician.
Frequently asked questions
Can I run LED lights off a gas generator? Sometimes, but match the light to the output and check the manual. Line-voltage LED fixtures run on the generator's 120V AC receptacles. Low-voltage LED lighting runs on a 12V/24V DC circuit — but a generator's DC outlet may be intended for battery charging only, so confirm in the manual before powering a light directly, or run the light from an appropriately designed battery circuit.
Why do my LED lights flicker on a generator? Often because the DC circuit's voltage is unregulated — it can run above nominal and vary with engine speed, load, and charge state, along with ripple or electrical noise. A standard fixed-12V LED may not handle that variation well. A wide-voltage (8–30V) constant-current LED is designed to tolerate normal variation within its rated range.
Is a generator's 12V output the same as a wall 12V adapter? Usually not. A regulated wall adapter holds a steady voltage; a generator's DC charging output is often unregulated and can vary with engine speed, load, and charge state. That variation is what can stress ordinary 12V LEDs over time.
What LED should I use for generator or off-grid DC lighting? One with a constant-current driver rated across a wide input range (such as 8–30V), so it runs within spec whether the bus is low or climbing under charge. Confirm the circuit's actual voltage range falls inside the light's rated window, and on 24V systems check that the charging voltage stays under the 30V limit.
Can I plug a 12V DC light bar into my generator's outlet? Not the 120V AC receptacle — that's the wrong output. A 12V DC light bar connects to the DC side (a battery circuit or, if the manual allows it, the generator's DC terminals). Check whether that DC outlet is charging-only before connecting a load.
This guide is general information for DC low-voltage lighting on generator and battery systems. Always confirm whether you are wiring to an AC or DC circuit, check the generator's manual for how its DC output is intended to be used, measure the actual voltage range, match the light's rated input window and wattage to that circuit, observe polarity and fusing, and follow the manufacturer's instructions for both the generator and the light. If you are unsure, consult a qualified electrician or technician.
