Short answer: A wide-voltage LED uses a constant-current driver that keeps the LED running across a range of input voltages — for example 8–30V — instead of a single fixed voltage. It earns its keep wherever the DC supply isn't clean and steady: vehicle alternators, solar and battery systems, generator auxiliary circuits, off-grid installations, and similar. On a stable, regulated supply it isn't necessary. The rule of thumb: match the light's rated input window to your circuit's actual measured voltage range, and pick wide-voltage when that range moves around.
What "wide voltage input" actually means
Every LED needs its current controlled — feed a bare LED raw voltage and it self-destructs. The circuit that does this is the driver, and drivers differ in how much input variation they tolerate.
- A fixed-voltage LED (a typical "12V" bulb) is designed around a narrow input near its nominal rating. It expects something close to a steady 12V.
- A wide-voltage LED uses a constant-current driver rated across a window — say 8V to 30V. Within that window, the driver works to hold the LED's current steady even as the input voltage moves. Feed it 9V or 13V or 26V and, as long as you're inside its rated range, it regulates the LED current accordingly.
The key idea: wide-voltage isn't about being brighter or more powerful. It's about tolerating an input that isn't constant — while the input stays within the product's specified operating range. It's a robustness feature, not a performance one.
One thing it is not: a wide operating range helps a light ride through normal voltage variation, but on its own it is not a claim of surge or transient protection. Those are separate protections.
Why a fixed-12V LED can struggle on unregulated DC
Plenty of DC sources are not the clean 12.0V a fixed-voltage bulb expects:
- A nominal 12V battery system can sit near 11–12V at rest and rise to roughly 14–15V while charging, though the actual range depends on the battery, charger, source, load, and conditions.
- Alternators, engine-speed changes, load switching, and charging cycles can introduce voltage variation, ripple, or electrical noise.
- Long cable runs and shared circuits add voltage drop on top of that.
A driver built for a narrow fixed input has little headroom for this. On a supply that runs above nominal and varies, a fixed-voltage LED's driver can be stressed over time, and the light may flicker or dim as the bus moves. A wide-voltage driver is built to keep working across that range instead. How much it matters depends on the specific source and light — this isn't universal, and a well-regulated DC supply won't cause these problems at all.
Which applications actually need wide voltage
Wide voltage is valuable exactly where the DC bus is unstable — and unnecessary where it's already regulated. A quick map:
| DC source / application | Wide voltage? | Why |
|---|---|---|
| Regulated bench or lab DC supply | Overkill | Voltage is already held steady at the set point |
| Regulated driver or wall-adapter output | Not needed | Output stays within a tight tolerance |
| Automotive / vehicle 12V (alternator) | Useful–required | Alternator output varies with engine speed and load, and can be noisy |
| 24V vehicle or equipment system | Useful–required | Same behavior at a higher nominal — verify the max stays under the light's limit |
| Solar charge-controller output | Useful | Voltage varies with charge stage and load |
| Battery bank (12V/24V nominal) | Useful | A "12V" bank can swing roughly 10.5–14.4V across charge and discharge |
| Generator auxiliary / charging DC | Useful | Often unregulated; varies with load and charge state |
| Telecom / equipment DC bus | Depends | Some are tightly regulated (not needed); some aren't (useful) |
The pattern: regulated supply → wide voltage is optional; unregulated or fluctuating supply → wide voltage is the safer spec.
What to check when speccing a wide-voltage LED
- Measure your circuit's actual voltage range, not just its nominal number. A "12V" system may idle near 11–12V and climb toward 14–15V under charge. Spec for the high end you actually see.
- Confirm the light's rated input window covers that range with margin.
- On a 24V system, verify the maximum voltage stays below the light's input limit (for an 8–30V light, under 30V). Some nominal 24V systems can approach or exceed that under charge, so check the numbers rather than assuming.
- Match wattage and current to what your circuit can supply.
- Choose a form factor for the environment — a rigid aluminum bar for enclosures, panels, and surface mounting.
- Remember a wide range tolerates variation, not surges — add separate protection if your application sees transients.
A wide-voltage LED example

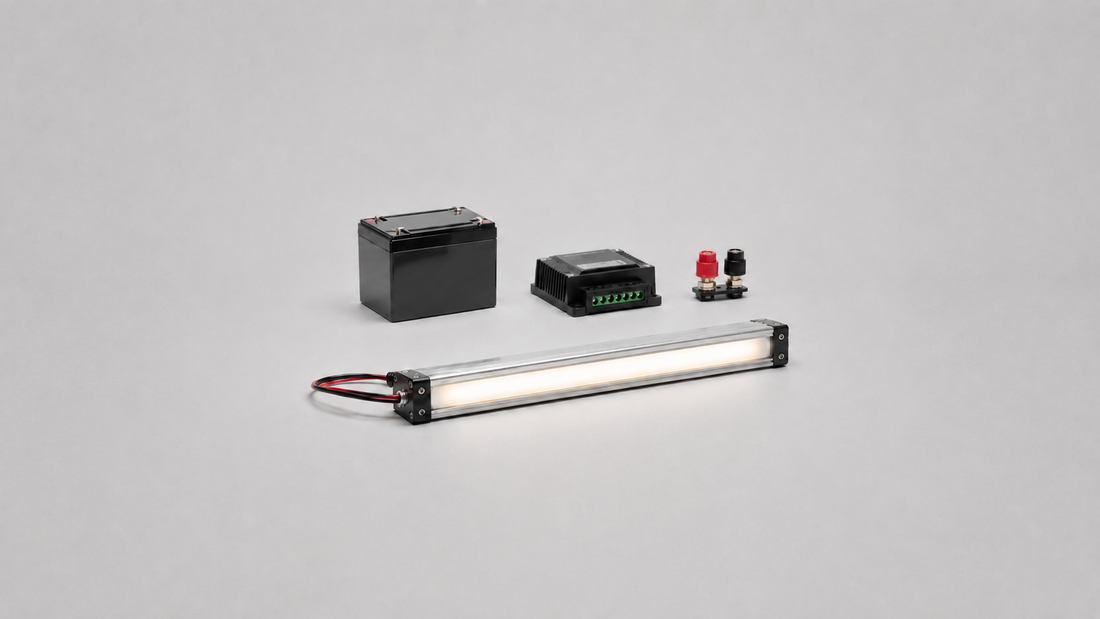

For equipment, enclosure, cabin, vehicle, and off-grid use, a rigid aluminum LED light bar with a wide-voltage driver is a common fit — it mounts flat to a surface or inside a housing and spreads light along a length. The 8–30V wide-voltage aluminum LED light bar is one example: its constant-current driver is rated to run from 8V to 30V, so it operates across 9V, 12V, and 24V systems, and it ships as a 12" aluminum bar with a mounting kit — used in marine, solar/wind, RV, vehicle, and equipment applications. As always, confirm your circuit's measured voltage range falls within the 8–30V window before wiring it in.
Frequently asked questions
What does "8–30V" mean on an LED light? It's the input voltage range the light's driver is rated to operate across. Anywhere from 8V to 30V, the constant-current driver works to keep the LED running properly — so the same light suits 9V, 12V, and 24V systems, as long as the actual voltage stays inside that window.
Do I need a wide-voltage LED? Only if your DC supply isn't steady. On a regulated bench supply or driver output, a fixed-voltage light is fine. On a vehicle, solar/battery, generator, or off-grid circuit — where voltage varies with load and charge — a wide-voltage light is the more robust choice.
Is a wide-voltage LED the same as surge-protected? No. A wide input range helps a light tolerate normal voltage variation within its rated window. It is not, by itself, protection against surges or transients — those require separate measures.
Can I run an 8–30V light on a 24V system? Usually yes, but verify the maximum voltage stays under the light's 30V limit. Some 24V systems climb toward or past that under charge, so check your system's real high-end voltage before connecting.
Does wide voltage make the light brighter? No. Wide voltage is about tolerating a varying input, not increasing output. Brightness comes from the LED and driver design, not the input range.
This guide is general information about DC low-voltage LED lighting. Always measure your circuit's actual voltage range, match the light's rated input window and wattage to that circuit, observe correct polarity and fusing, and follow the manufacturer's instructions for both the light and your power source. If you are unsure, consult a qualified electrician or technician.
