Short answer: A constant-current LED driver is the circuit that holds the current through an LED at a fixed value, in milliamps, and lets the voltage across the LED land wherever it needs to. LEDs are current-driven devices, not voltage-driven ones. On a 12V or 24V DC bus, where supply voltage moves constantly, current regulation is what keeps brightness steady and the LED alive.
Constant current, constant voltage, or a resistor: what is the difference?
| What it regulates | What happens when input voltage moves | What happens when the LED heats up | Typical use | |
|---|---|---|---|---|
| Constant-current driver | Output current, held at a set mA value | Driver adjusts output to hold current, within its rated input window | Current stays put; brightness stays put | LED emitters, modules, engineered fixtures |
| Constant-voltage supply | Output voltage, held at a fixed V | LED current tracks the change, amplified | Current climbs as forward voltage falls | Strip that already has resistors or drivers on board |
| Series resistor | Nothing actively; it drops the difference | Current changes roughly in proportion to the change | Current climbs, resistor only partly damps it | Indicators, low-power, cost-driven designs |
The distinction is not academic. It decides whether your lighting survives a charging cycle.
Why can you not just give an LED the right voltage?
Because "the right voltage" is a moving target, and the target moves in the wrong direction.
An LED is a diode. Its current-versus-voltage curve is exponential in the operating region, so a small change in applied voltage produces a large change in current. Push a bit more voltage and you do not get a bit more current, you get a lot more.
Worse, the forward voltage of an LED has a negative temperature coefficient. As the junction warms, the forward voltage it needs drops, typically in the range of a few millivolts per degree C per junction, varying with the semiconductor chemistry. Under a fixed applied voltage that creates a positive feedback loop:
- LED warms up in normal operation
- Forward voltage falls
- Current rises, because the applied voltage has not changed
- More current means more power dissipated, so the LED warms further
- Return to step 2
That loop is thermal runaway, and it ends with degraded output, color shift, or a dead emitter. A constant-current driver breaks it at step 3: when forward voltage falls, the driver reduces its output voltage to keep the current at the setpoint. The loop never closes.
Manufacturing spread makes the same point. Two white LEDs from the same reel can specify forward voltages hundreds of millivolts apart, which is why manufacturers bin parts by forward voltage. Drive them at a common fixed voltage and they draw noticeably different currents and produce noticeably different brightness. Drive them at a common current and they match.
What does this look like on a real 12V or 24V DC system?
This is where the theory becomes a warranty claim. A nominal "12V" system is almost never sitting at 12.0V. Typical figures for a 12V lead-acid bank and its 24V equivalent:
| Condition | 12V system, approximate | 24V system, approximate |
|---|---|---|
| Deeply discharged | 11.9 to 12.0V | 23.8 to 24.0V |
| Rested, fully charged | 12.6 to 12.8V | 25.2 to 25.6V |
| Float / trickle charge | 13.2 to 13.8V | 26.4 to 27.6V |
| Bulk / absorption charge | 14.4 to 14.7V | 28.8 to 29.4V |
| Alternator running | 13.8 to 14.4V | 27.6 to 28.8V |
| Engine cranking dip | Can fall to 10 to 11V | Roughly doubled |
Exact thresholds depend on chemistry, charger profile, temperature compensation and manufacturer specification, so measure your own bus rather than assuming these numbers. But the shape is consistent: the supply can swing 20 to 30 percent around nominal in ordinary operation, and it does so many times a day.
Feed that swing to a fixture with no current regulation and the brightness visibly pulses with the charge cycle, while the LEDs run hot at the top of the range. Feed it to a properly specified constant-current fixture with a matching input window, and the light does not care.
This is the mechanism underneath our companion article on wide-voltage 8-30V LEDs, and the reason generator DC auxiliary circuits chew through generic 12V lamps. Same root cause, different enclosure.
How do you spec a constant-current driver?
Three numbers matter, and specifying only the first is the common mistake.
- Output current (mA). The setpoint. It must match what the LED load is rated for. Overdriving raises lumens per fixture but cuts life and shifts color.
- Output voltage compliance range (V). The window the driver can swing its output across to hit that current. Your LED string's total forward voltage, hot and cold, must sit inside this window. A string that falls below the minimum compliance voltage can behave erratically.
- Input voltage range (V). The supply window the driver itself tolerates. This is the spec that decides whether the fixture survives a DC bus. An 8-30V input window covers both 12V and 24V nominal systems with headroom at both ends.
Match all three, in that order, and confirm against a datasheet rather than a marketing bullet.
Separate driver, or driver built into the fixture?
Both are legitimate engineering answers. They apply to different problems.
A separate, external constant-current driver makes sense when you are building the light: you have raw emitters, a COB array, or a custom string, and you need to choose the drive current yourself. This is board-level design work, and the driver is a component you specify like any other.
A driver integrated into the fixture makes sense when you are integrating lighting into a system rather than designing the light itself. Panel and enclosure lighting, cabin and berth lighting, equipment indicators, under-cabinet runs, service compartments. Here an external driver adds a second failure point, a second enclosure, more wiring, and more to get wrong on a bus that already fluctuates. You want a sealed unit that takes DC in and produces stable light.

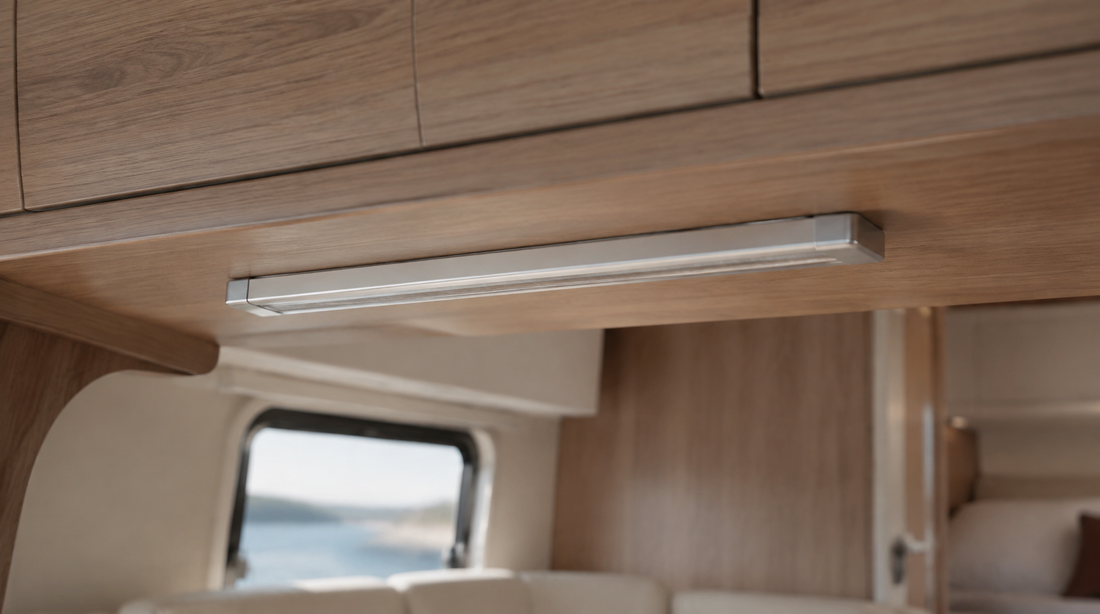

For that second case, our 8-30V constant-current aluminum LED light bar is built around exactly this: the light bar carries a constant-current wide-working-voltage driver on board, rated for 8V to 30V input, so it runs on nominal 9V, 12V and 24V systems without a separate driver in the loop. It is a 12 inch nominal bar drawing 4W for 300 lumens, in an aluminum frame with a clear acrylic cover, supplied with a 50cm lead and a mounting kit, in cool white or warm white. For marine, solar and off-grid, vehicle and RV, and cabinet and enclosure work, it is one part number instead of three.
What constant-current regulation does not fix
Honest limits, because overclaiming here gets equipment damaged.
- It is not a surge protector. Transients above the driver's rated input, such as automotive load dump or an inductive spike from a nearby contactor, are outside the regulation window. Vehicle and industrial installs may still need suppression at the circuit level.
- It is not a heat sink. A driver holds current constant, but if the fixture cannot shed heat, junction temperature still climbs and lumen depreciation still accelerates. Thermal path is a separate design problem.
- It does not guarantee flicker-free light. Many drivers dim by pulse-width modulation, switching the current on and off rapidly. Average current is regulated; instantaneous current is not. If flicker matters, look for the driver's ripple and dimming specification, not just the words "constant current."
- It does not make the driver the reliable part. The U.S. Department of Energy's guidance on LED luminaire lifetime notes that driver electronics can be an important reliability concern for LED systems, at times more so than the LED sources themselves, with capacitor failure a leading driver failure mode. The driver protects the LED. It does not exempt itself.
Frequently asked questions
Is a constant-current driver the same as an LED transformer? No. "Transformer" usually refers to a constant-voltage supply that steps mains down to a fixed low voltage, commonly 12V. It holds voltage steady, not current. An LED designed for constant-current drive will not behave correctly on one, and an LED with its own on-board driver expecting a fixed 12V input will not behave correctly on a raw constant-current source.
Can I run a constant-current LED module directly from a 12V battery? Only if the module includes its own driver rated for that supply. A bare emitter or string connected straight to a battery has nothing limiting its current, and battery voltage is well above nominal during charging. That combination damages LEDs quickly.
Why does my 12V LED get brighter when the engine starts? Because the alternator raises bus voltage, commonly into the 13.8 to 14.4V region, and the LED is drawing more current as a result. A visible brightness shift with charging state is a strong sign the fixture has little or no current regulation, or a driver with a narrow input window.
Does a wide input range mean the light is dimmer at the low end? Not within the rated window. That is the point of current regulation: the driver holds output current across the whole rated input range, so output should stay essentially flat from the bottom of the window to the top. Below the minimum input, all bets are off.
Do LED strips need a constant-current driver? It depends on the strip. Most common 12V and 24V flexible strip is designed as a constant-voltage load with current-limiting resistors already on the tape, so it takes a constant-voltage supply. Some higher-end and rigid bar products regulate current on board instead. Check the specification before choosing a supply; the two are not interchangeable.
Is constant current always better than a resistor? Not always. For a low-power indicator on a well-regulated rail, a resistor is cheap, simple and adequate. Constant-current regulation earns its cost where the supply is unstable, where the LED runs at meaningful power, or where consistent output across temperature and units actually matters. On an off-grid or vehicle DC bus, all three usually apply.
This article is general engineering information, not a substitute for manufacturer documentation. Always confirm drive current, input voltage range, output compliance range and thermal requirements against the datasheets for your specific LED and driver, and match the fixture rating to the measured voltage range of your actual circuit.
